The rig that catches salmon most often is simple: mainline to your diver, a swivel, a snubber, another swivel, 18 inches of mono to your flasher, then 4 to 12 feet of leader to your hooks or lure. The snubber soaks up the shock of a hard strike, the leader length controls how far your bait swims behind the flash, and every knot in between needs to hold under real pressure. Get those measurements right and you’re fishing correctly before your buddy finishes his second cup of coffee. The full breakdown, with knots and exact numbers, is a few sections down.
TL;DR:
- Using a snubber between the diver and leader is crucial, as it protects your knots and hooks from the violent headshakes of strikes.
- Mainline strength should be 30 to 65 pounds braid for sensitivity or 30 pounds mono with stretch, depending on personal preference and fishing conditions.
- Proper diver depth depends on line out length and boat speed, with heavier weights like 12 ounces used for bottom-hugging salmon and lighter weights for open water.
- Leader lengths between diver, flasher, and hooks should generally be 18 inches to 6 feet, with longer leaders recommended for late-season and clear water conditions.
- Regularly inspect and test knots, snubbers, and release tension dockside to avoid missed fish caused by rigging issues during the fishing trip.
Table of Contents
- What You Need: Divers, Lines, Snubbers, Flashers, Hooks, and Weights
- How Do You Rig a Dipsy Diver Step by Step?
- How Do You Set Diver Depth and Trolling Speed?
- How Should You Tune Rigs by Species and Season?
- What Does Nick’s Pre-Launch Checklist Look Like?
- What Actually Matters in Salmon Diver Rigging
- Where to Get the Parts: Gear That Matches This Rig
- Primary Manuals and Authoritative Articles Used to Build This Guide
- Sources
- FAQ
What You Need: Divers, Lines, Snubbers, Flashers, Hooks, and Weights
Before you tie a single knot, get the parts right. Salmon diver rigging lives or dies on component choice, and cutting corners here shows up as missed strikes and lost fish later.
Divers come in three flavors. Standard Dipsy divers turn out to the side and dig deep, and they’re the workhorse for most salmon trollers. Jet divers plane down at an angle and float back up when the rod loads, which makes them a smart, low-cost pick when you’re fishing snaggy structure or don’t own a downrigger, and they reach depths of roughly 15 to 60 feet depending on line out and size. Wire divers need a buffer section (more on that below) but track truer at speed.
Mainline should run 30 to 65 lb braid for sensitivity, or 30 lb mono if you prefer built-in stretch. Braid transmits every tap through a Dipsy’s resistance, which matters more than people think when you’re trying to feel bottom.
Snubbers are simple rubber shock absorbers, and they belong between the diver and your leader, not buried down by the hooks. That placement protects your knots and hooks from the violent headshake of a striking king.
Flashers in the 11-inch rotating style are the industry default because they push enough water to be seen from a distance without overpowering a smaller lure.
Hooks and weights round it out:
- 4/0 to 5/0 hooks with heavier leaders for Chinook, which hit harder and fight dirtier than coho
- Dropper weights (lead or cannon balls) steepen your diver’s dive angle and add depth without changing line-out
- Weight sliders let you adjust on the fly without re-rigging the whole spread
How Do You Rig a Dipsy Diver Step by Step?

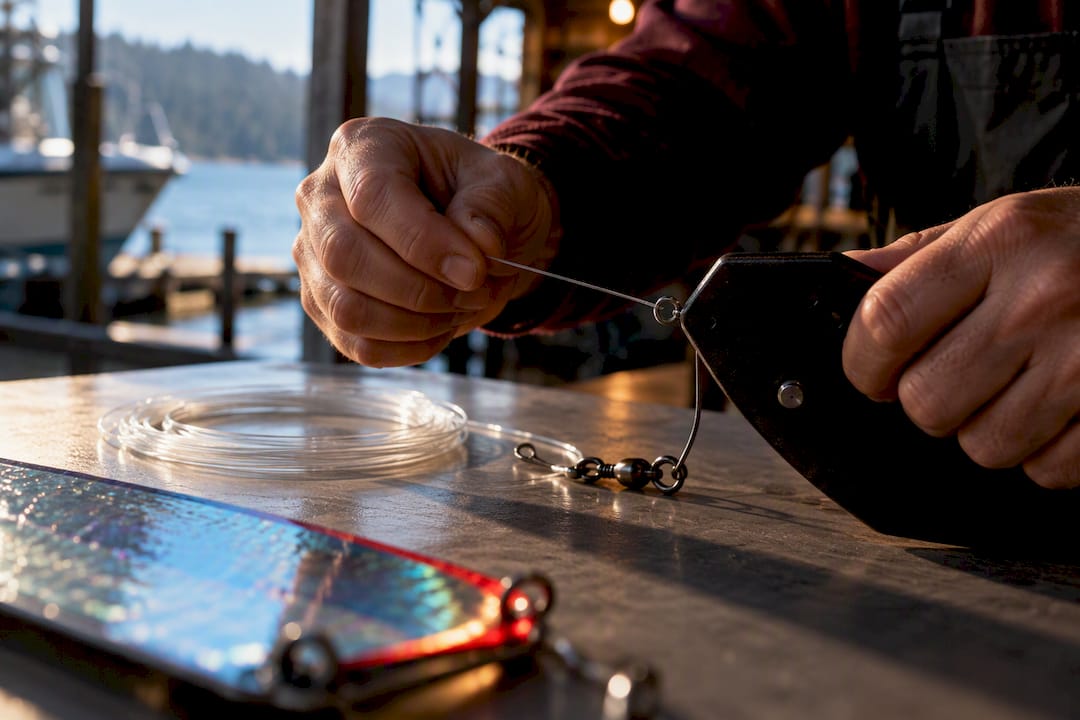

Here’s the build, start to finish, for a standard S-clip Dipsy setup.
- Tie your mainline to the diver using a strong loop knot or a barrel swivel crimped on. Braid to the diver, always, for the sensitivity mentioned above.
- Attach a swivel, then the snubber, then a second swivel. This is the shock-absorbing sandwich that keeps your gear intact through a strike.
- Run 18 inches of mono from that second swivel to your flasher’s clip. Short and stiff here keeps the flasher’s rotation tight.
- Attach roughly 60 inches of leader from the flasher to a two-hook mooching rig, a spacing pulled straight from tested Buoy 10 setups that anglers have refined over decades on the Columbia.
- Tie your hooks with a double uni knot connecting leader sections, and use a dropper loop where you need a branch for a second hook or a dropper weight.
- Clip everything through an S-clip or S-Biner instead of tying directly to the diver. That single choice is what makes salmon diver rigging fast. Swap leader colors or lure styles in seconds instead of re-tying boatside while fish are biting.
Wire diver adjustment: if you’re running a wire diver instead of braid, insert 6 to 8 feet of 60 lb braid between the wire and your mono leader. This buffer section lets you tie a dropper loop without stressing the wire splice itself, and a proper Albright knot joins the wire to the braid cleanly. Thread a scrap of Dacron sheathing through the loop before you tighten it. That small step keeps the braid from sawing through itself under load.
On leader minimums, don’t get greedy trying to save line. Manufacturer diagrams call for at least 4 to 6 feet between diver and lure, or a full 48 inches when running a dodger, and that same manual recommends setting base plate tension tight enough to hold the release pin but loose enough to trip on a real strike. Test that tension dockside, not after you’ve missed three fish.
Pro Tip: Keep total leader length no longer than your rod. It sounds minor, but a leader longer than the rod means hand-lining the last few feet boatside, and that’s exactly when green fish shake hooks free.
How Do You Set Diver Depth and Trolling Speed?
Depth comes down to three variables working together: diver size, how much line you’ve let out, and boat speed. More line out means more depth, but only up to a point, and speed changes that curve fast. Bump your throttle and a diver that was running 25 feet suddenly rides shallower because water pressure against the blade lightens the dive angle.
Salmon trolling speed generally sits between 1 and 4 knots, with the slower end suited to bait presentations and the faster end matched to spinners and hoochies that need water flow to kick.
Weight recipes worth knowing:
- A 12 oz cannon ball on a 24-inch dropper keeps gear pinned near bottom for structure-hugging kings
- A 10 to 15 lb rigger ball works better for open-water spinner spreads where you’re covering column, not bottom
- Adding a dropper weight steepens your diver’s angle, so you’ll need less line out to hit the same depth
One number worth remembering: offshore trollers commonly run 10 to 50 lb weights to hold lines at target depth, a reminder that “heavy” is relative to how deep and fast you’re fishing.
Tangle prevention matters as much as depth control. Mainline twist builds up fast with rotating flashers, so add an extra ball-bearing swivel above the flasher clip, not just at the diver. And if you’re running braid straight to a wire diver connection, that buffer loop from the last section isn’t optional. It’s what stops your wire knot from working itself loose under sustained trolling load.
How Should You Tune Rigs by Species and Season?
Chinook and coho fish differently, and your rig should reflect that.
- Chinook want heavier leaders (30 to 40 lb test is common), 4/0 to 5/0 hooks, and a snubber built for a harder strike. These fish hit like a freight train and thrash on the hookset, so undersized snubbers tear hooks free.
- Coho respond better to lighter leaders and shorter distances behind the flasher. They’re aggressive chasers, and a faster, tighter presentation triggers more strikes than a long, lazy leader.
- Late season calls for longer leaders, tougher snubbers, and often a deeper diver or heavier dropper as fish hold lower in the column. Practitioners specifically flag snubbers as essential late in the run because hard-striking kings tear hooks without one.
- Water clarity drives flasher choice: bright, high-contrast flashers in murky river mouths, subtler or smaller flashers in clear open water where flash alone can spook fish.
A Buoy 10 mooching setup and an open-lake dipsy run share the same bones but look nothing alike on the water. One’s tuned for tight river current and current-driven speed changes, the other for steady open-water trolling passes.
What Does Nick’s Pre-Launch Checklist Look Like?
A few minutes at the dock saves hours of frustration on the water. Run this before every trip:
- Inspect the snubber for cracking or stretch. A worn snubber loses its shock absorption right when you need it most.
- Check every knot, especially the double uni joints and dropper loops, for slippage or fraying.
- Verify leader lengths match your target species and haven’t been shortened by repeated re-tying.
- Test diver release tension by hand. It should hold firm, then trip clean.
On the water, a few field fixes come up constantly. A stuck diver that won’t trip usually needs a firm rod sweep, not more drag. If a leader gets nicked, cut back past the damage and retie rather than fishing a compromised line. And if you notice frayed loops on a braid buffer connection, retie it dockside next trip. Don’t push a damaged knot through another full day of trolling.
Pro Tip: A short pre-departure checklist covering knots, snubbers, swivel count, and leader length catches most rigging problems before they cost you a fish, not after.
For heavier chinook-specific setups, our breakdown of Chinook trolling rigs goes deeper into leader and hook sizing for big fish.
What Actually Matters in Salmon Diver Rigging
Most rigging guides treat every component like it carries equal weight, and that’s backwards. The snubber and the leader length do more work than anything else in this system, yet they’re the two things anglers skip or shortcut most often to save five minutes at the dock.
I’d argue the conventional wisdom oversells knot complexity and undersells tension testing. You can tie a flawless double uni and still lose fish if your diver’s release tension is set wrong, because the whole point of that release is to fire cleanly under load. Test it by hand before you leave the ramp, every time, not just when a rig is new.
The S-clip system gets treated as a convenience feature, but it’s really a fishing-time multiplier. Anglers who tie everything direct to the diver spend their best bite windows re-rigging instead of casting. Swap components fast, and you fish more of the window when salmon are actually moving.
Prioritize the snubber, the release tension, and quick-change hardware first. Knot variety and exotic leader materials come second. Get the fundamentals dialed and the rest of the rig takes care of itself.
— Nick
Where to Get the Parts: Gear That Matches This Rig
Once you know the layout, sourcing the right pieces shouldn’t slow you down. The categories this whole rig depends on are stocked by anglers familiar with West Coast waters, rather than a warehouse team guessing at specs.
Start with flashers and bumpers for your 11 inch rotating flasher, then check the weights collection for cannon balls and droppers sized to your target depth. Need scent to load onto your hoochie or bait rig? The bait selection covers that angle too. If you’re building out a full hoochie presentation behind your flasher, our salmon hoochie rig guide walks through sizing and leader length pairings. Browse the full shop to piece together everything from blades to terminal tackle in one pass, and get your spread rigged before the next tide window opens.
Primary Manuals and Authoritative Articles Used to Build This Guide
The Dipsy Diver technical manual provides the manufacturer’s own rigging diagrams and tension settings. The Salmon & Steelhead Journal’s Buoy 10 breakdown documents tested real-world spacing. Virtual Angling’s Dipsy diver piece covers snubber rationale and leader preferences from working anglers.
Sources
- Dipsy Diver technical manual
- Tackling Buoy 10 – Salmon & Steelhead Journal
- Dipsy diver setups for Great Lakes salmon and trout
- Troll — Discover West Coast Seafood
FAQ
What Is the Best Rig Setup for Salmon Fishing?
The most reliable layout is mainline to a diver, a swivel, a snubber, another swivel, 18 inches of mono to a flasher, then 4 to 12 feet of leader to your hooks or lure. This structure balances shock absorption, flasher action, and bait presentation in one package that works across most trolling conditions.
How Do You Rig a Dipsy Diver for Salmon?
Tie braid to the diver, add a swivel, snubber, and second swivel, then run 18 inches of mono to your flasher and roughly 60 inches of leader to a two-hook mooching rig. Using an S-clip instead of tying direct lets you swap leaders and lures in seconds without re-rigging the whole line.
What Is the Best Diver for Salmon Trolling?
Standard Dipsy divers are the most common choice because they dig deep and adjust easily with line-out and dial settings. Jet divers work well as a lighter, lower-cost option in snaggy water since they float back to the surface once the rod loads, while wire divers hold truer tracking at higher trolling speeds.
What Is the Best Setup for Salmon Plunking?
Plunking relies on stationary bait presentation rather than a diver, but the same snubber and leader-length principles apply: use a snubber to absorb strikes and keep leader length matched to current speed and water clarity. In faster or off-color water, a shorter, stouter leader with a scent-soaked bait tends to hold fish better than a long, light one.
How Long Should Leaders Be Between Diver, Flasher, and Hooks?
Run about 18 inches of mono between your diver’s swivel and the flasher, then roughly 60 inches from the flasher to your hooks. Manufacturer guidance calls for a 4 to 6 foot minimum between diver and lure, extending to 48 inches minimum when a dodger is in the mix.
